Our Equipment

General Purpose and High Cube Reefer Open Top Flat Rack
20GP 40GP 40HC 20RH 40RH 20OH 20OT 40OT 20FR 40FR

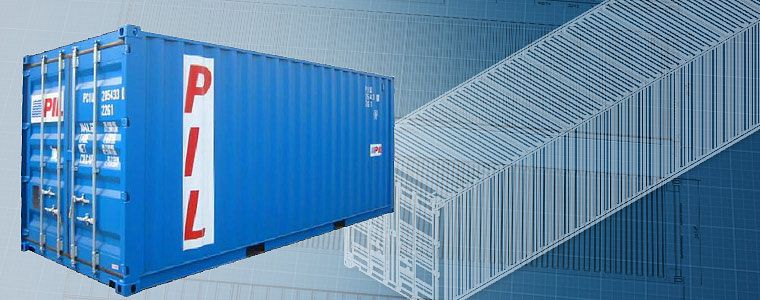

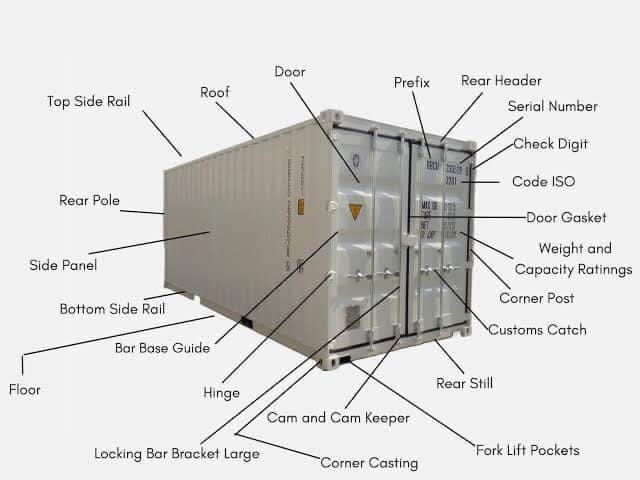

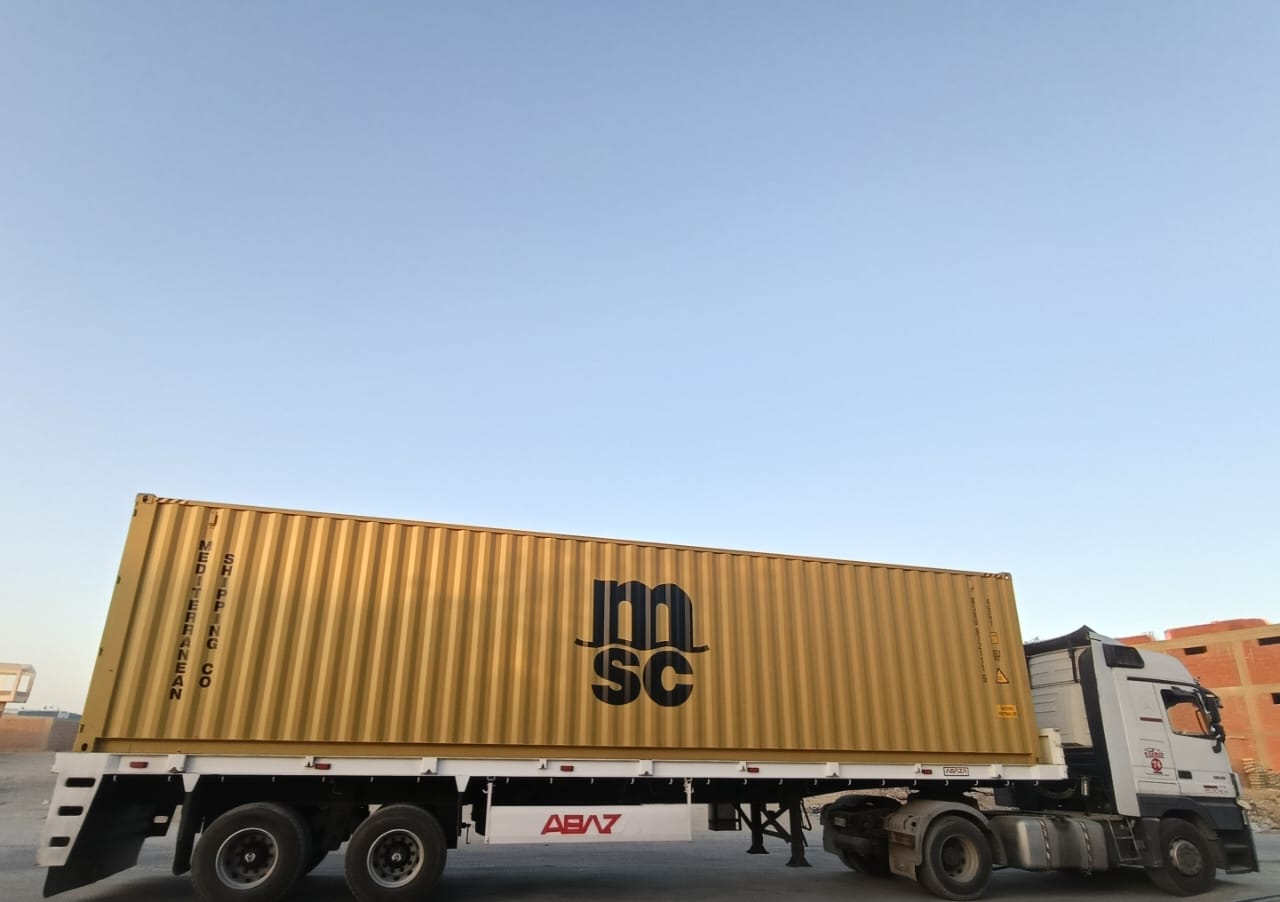

20GP :: General Purpose 20' x 8' x 8'6''

Internal Dimensions mm ft
Length 5898 19' 4.2''
Width 2352 7' 8.6''
Height 2395 7' 10.3''
Door Opening mm ft
Width 2340 7' 8.1''
Height 2280 7' 5.8''
Weight kg lbs
Max Gross 30479 67200
Tare Weight (excl. machinery) 0 0
Tare Weight (incl. machinery) 2225 4806
Max Payload 28255 62394
Max Point of Load T/m² lbs/ft²
  3.50 716.90
Internal Capacity ft³
  33.2 1173

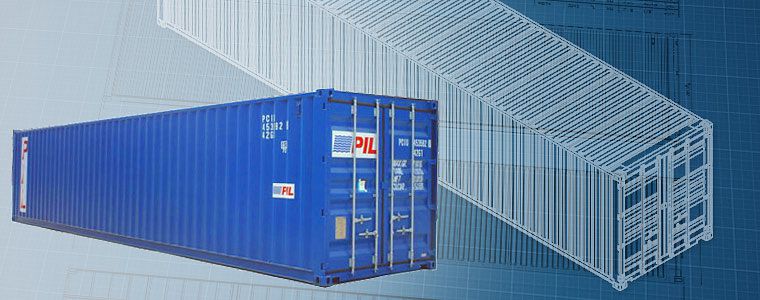

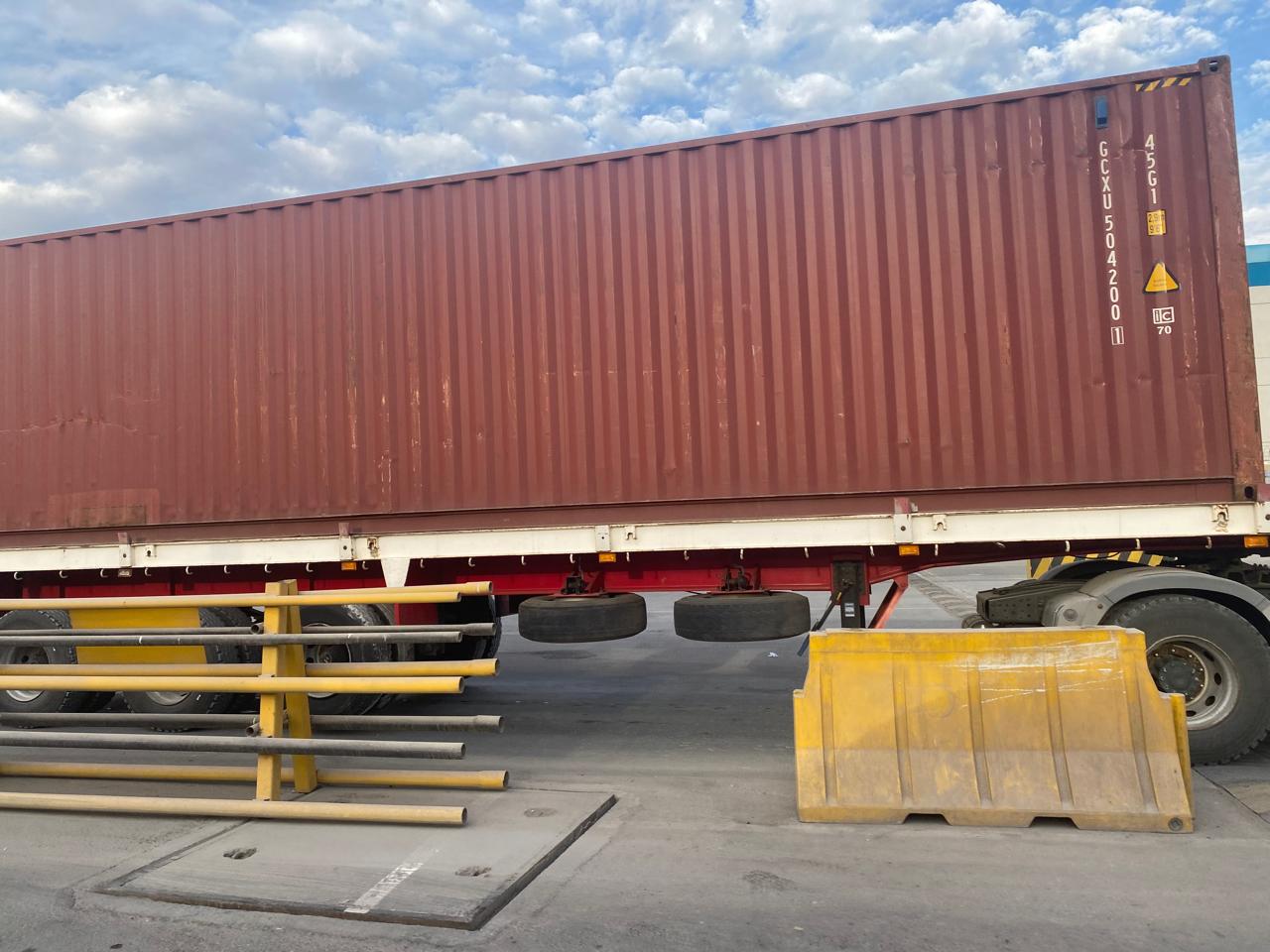

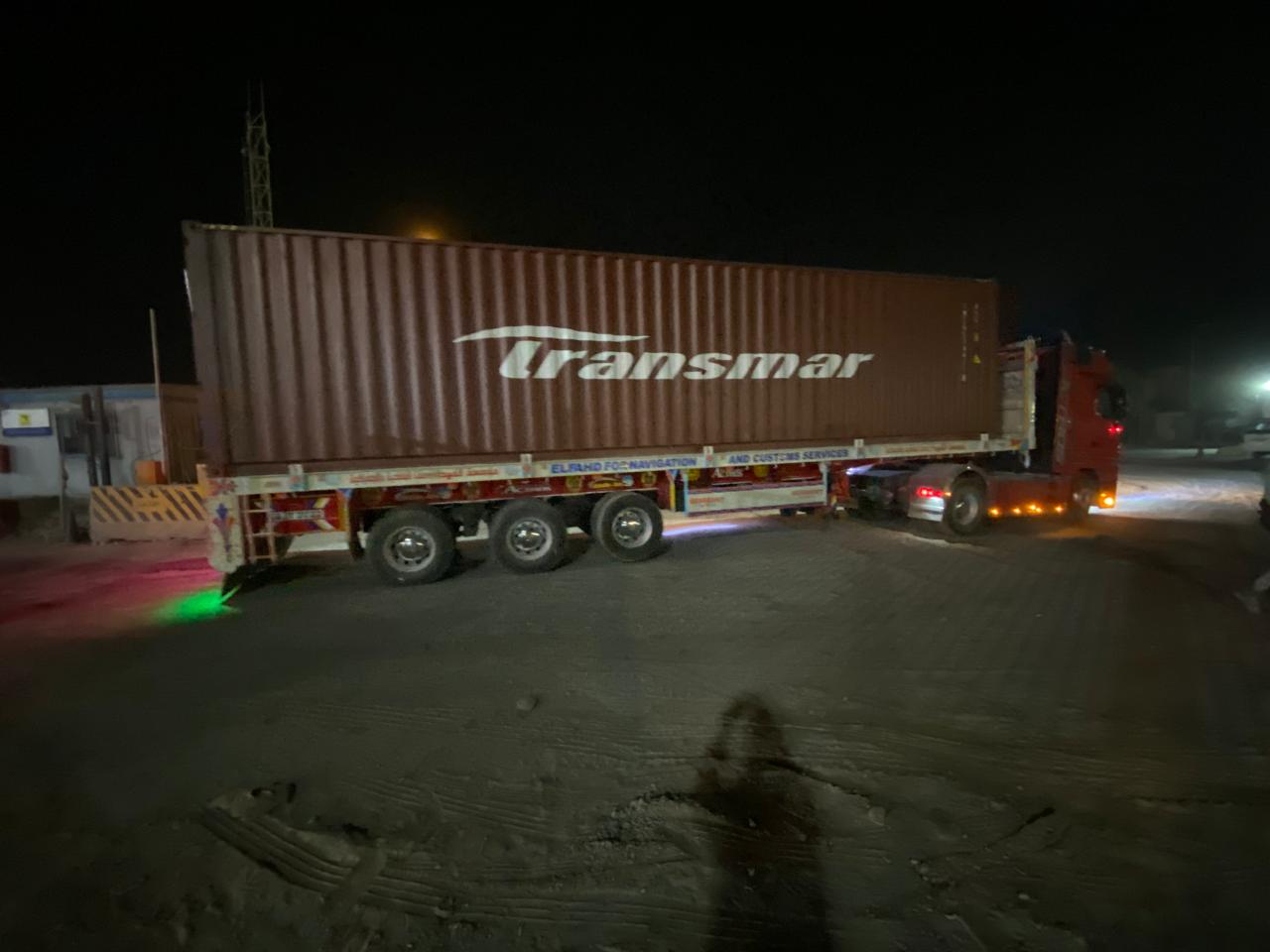

40GP :: General Purpose 40' x 8' x 8'6''

Internal Dimensions mm ft
Length 12031 39' 5.7''
Width 2352 7' 8.6''
Height 2395 7' 10.3''
Door Opening mm ft
Width 2340 7' 8.1''
Height 2280 7' 5.8''
Weight kg lbs
Max Gross 30274 67200
Tare Weight (excl. machinery) 0 0
Tare Weight (incl. machinery) 3297 8245
Max Payload 26976 58955
Max Point of Load T/m² lbs/ft²
  2.00 409.60
Internal Capacity ft³
  67.8 2394

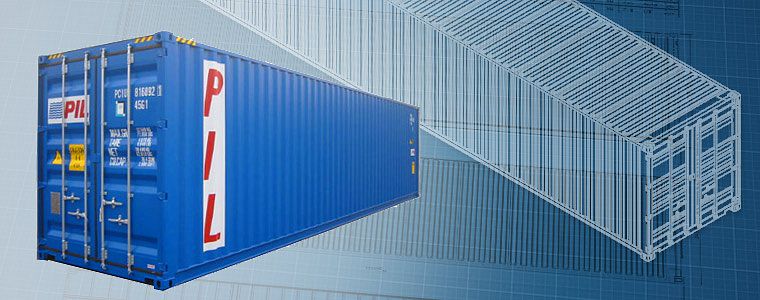

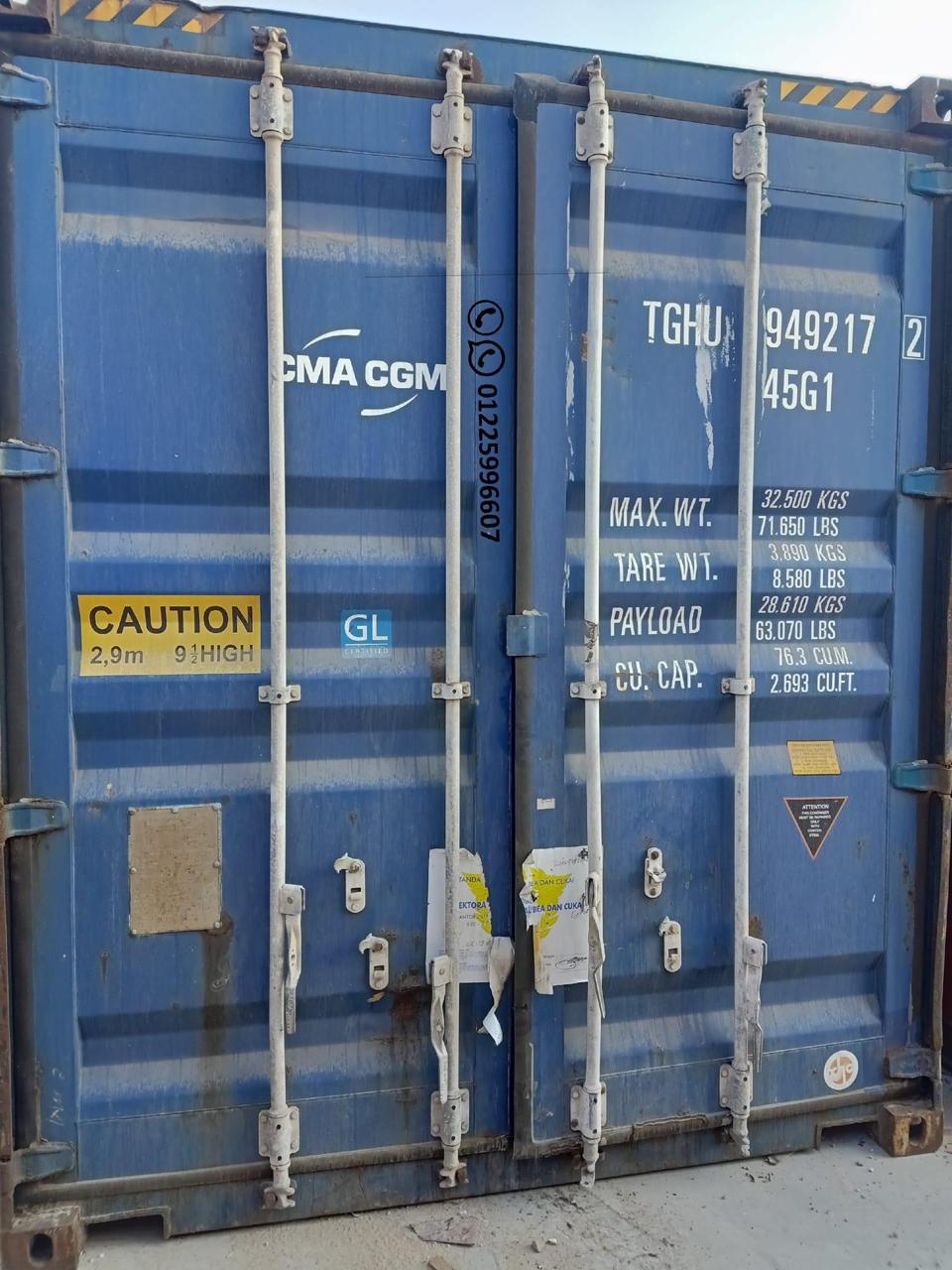

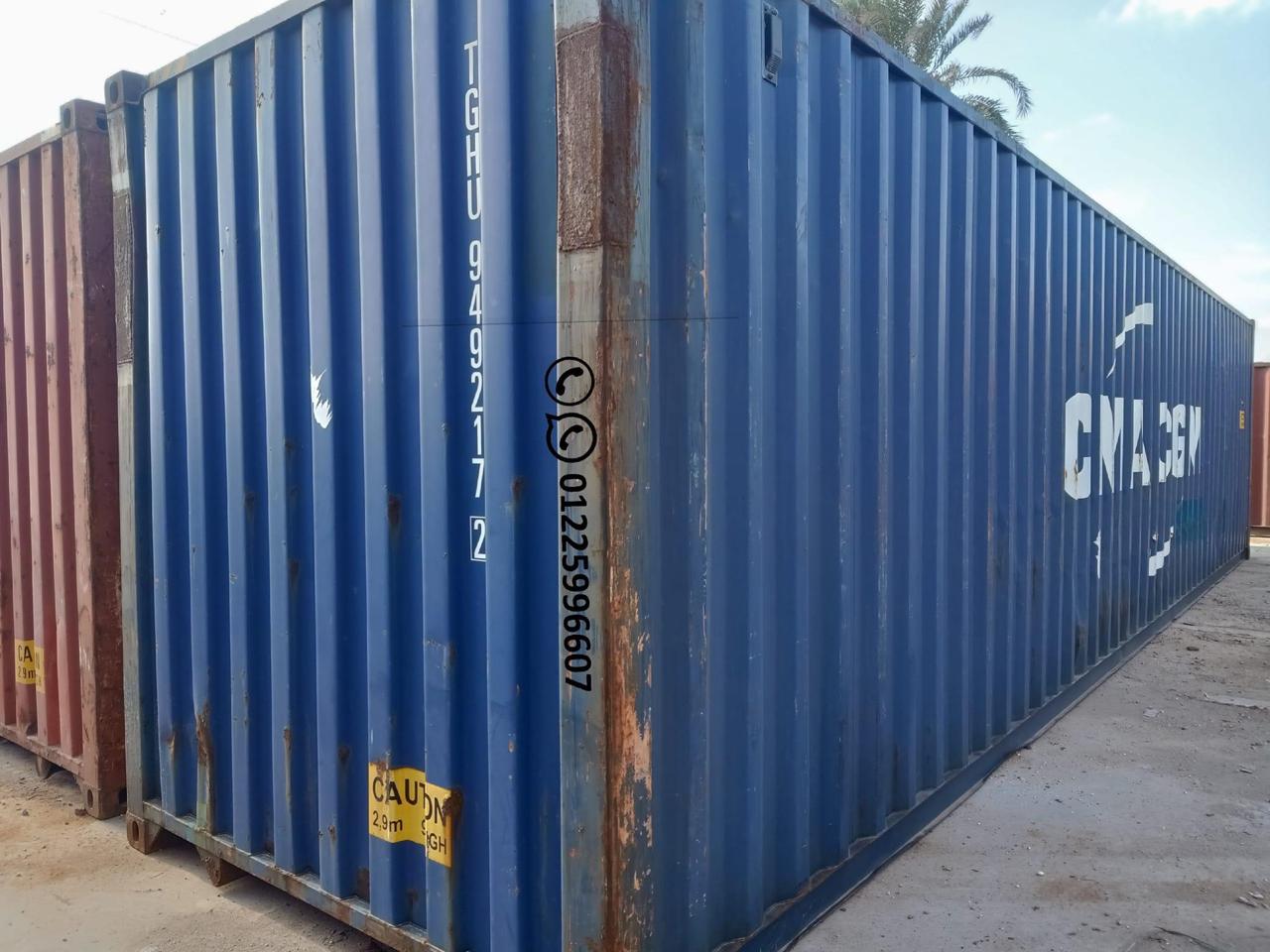

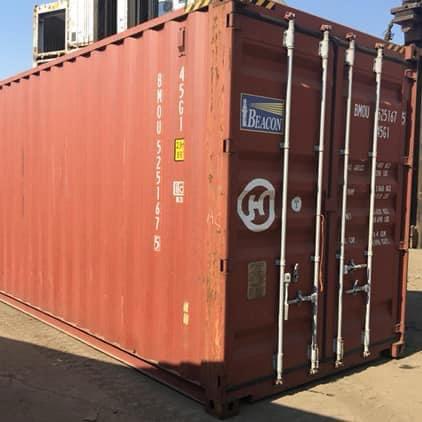

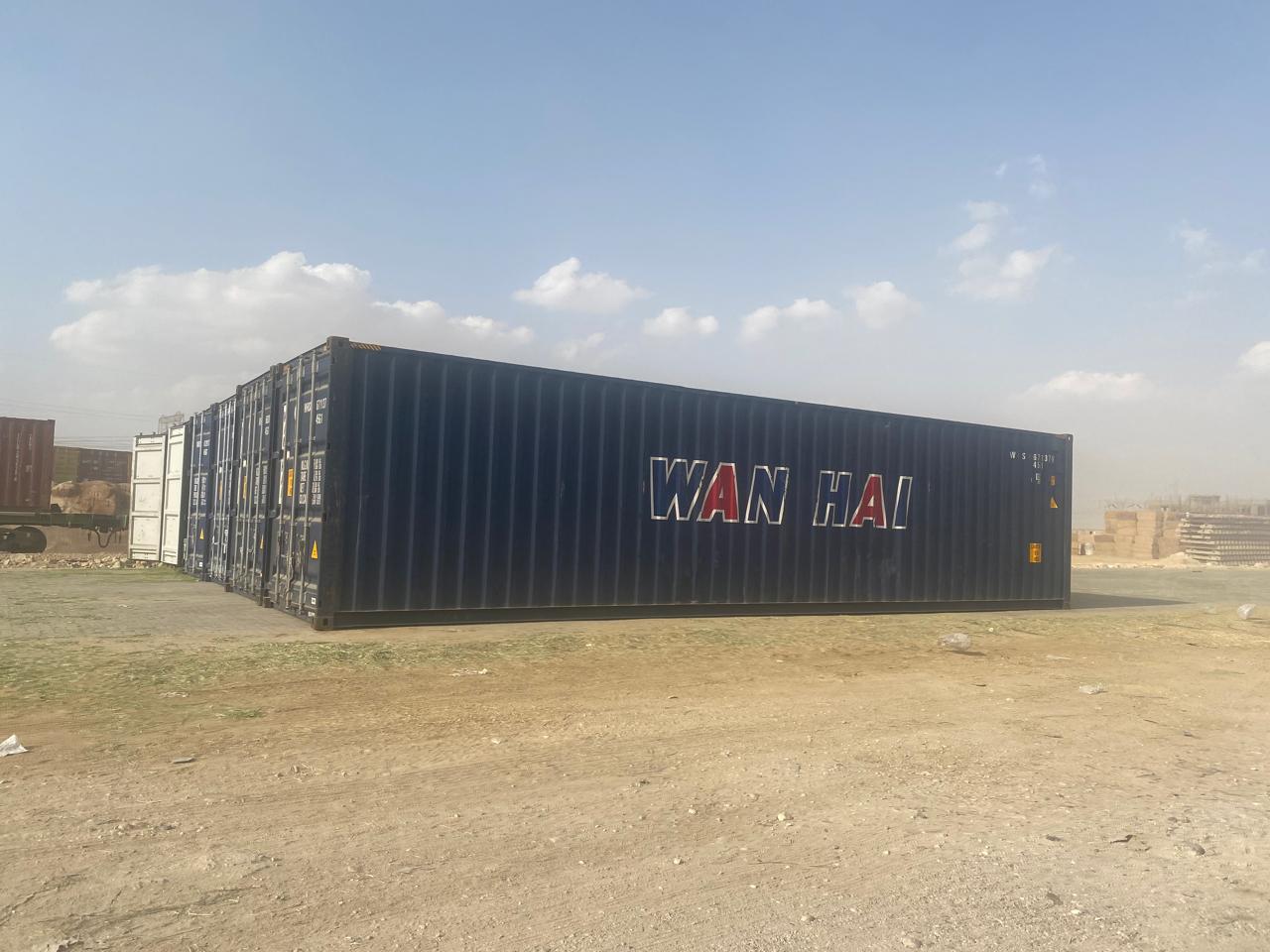

40HC :: General Purpose 40' x 8' x 9'6''

Internal Dimensions mm ft
Length 12031 39' 5.7''
Width 2352 7' 8.6''
Height 2700 8' 10.1''
Door Opening mm ft
Width 2340 7' 8.1''
Height 2585 8' 5.8''
Weight kg lbs
Max Gross 31754 67200
Tare Weight (excl. machinery) 0 0
Tare Weight (incl. machinery) 3837 8488
Max Payload 27918 58712
Max Point of Load T/m² lbs/ft²
  2.00 409.60
Internal Capacity ft³
  76.4 2698

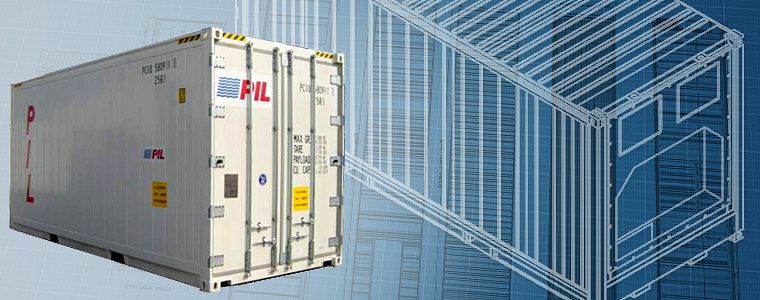

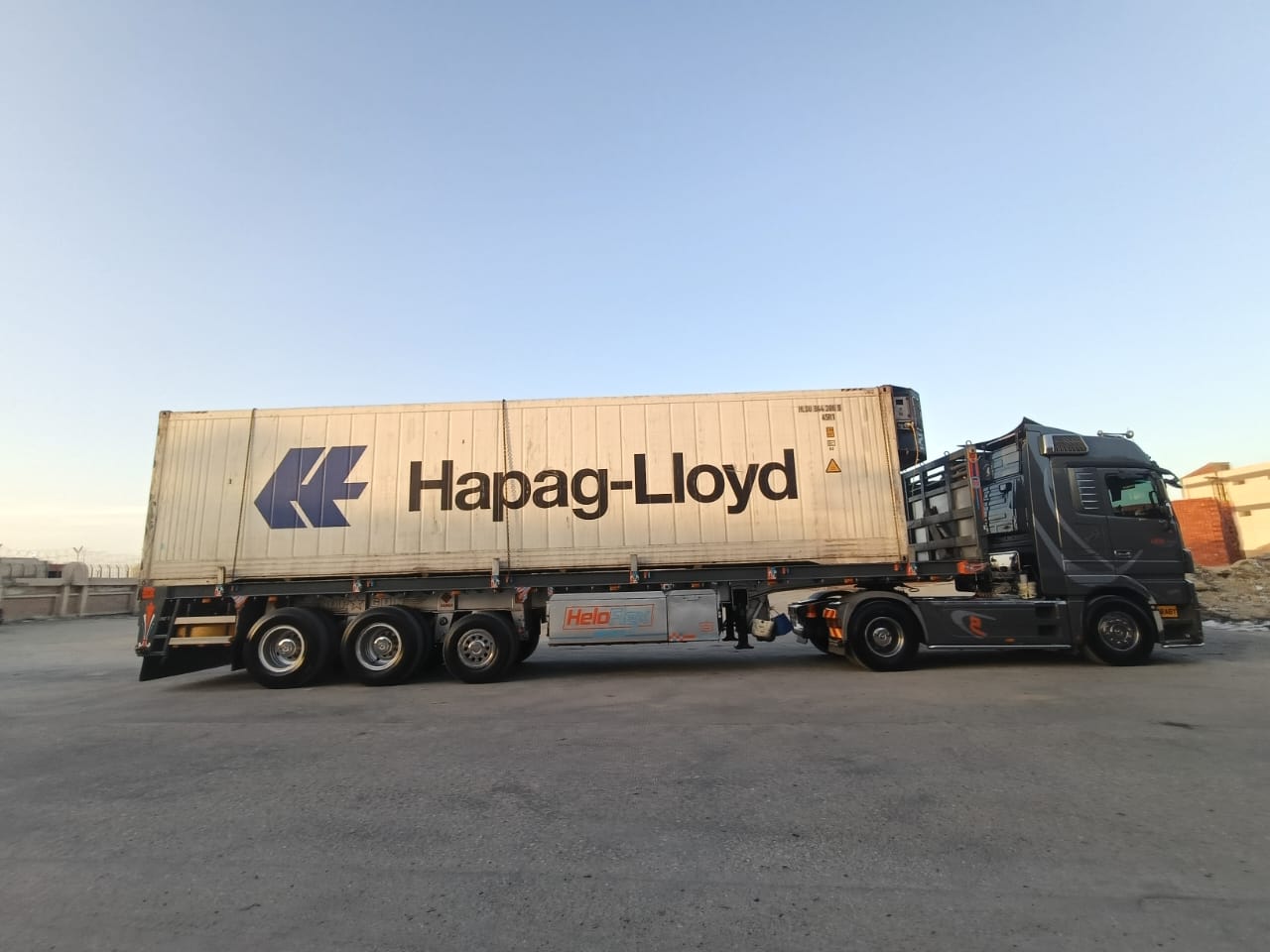

20RH :: Reefer 20' x 8' x 9'6''

Internal Dimensions mm ft
Length 5506 18' 8''
Width 2304 7' 7''
Height 2602 8' 6''
Door Opening mm ft
Width 2294 7' 6''
Height 2569 8' 5''
Weight kg lbs
Max Gross 27938 59520
Tare Weight (excl. machinery) 2820 6214
Tare Weight (incl. machinery) 3244 7150
Max Payload 24694 52370
Max Point of Load T/m² lbs/ft²
  3.00 614.40
Internal Capacity ft³
  32.2 1140

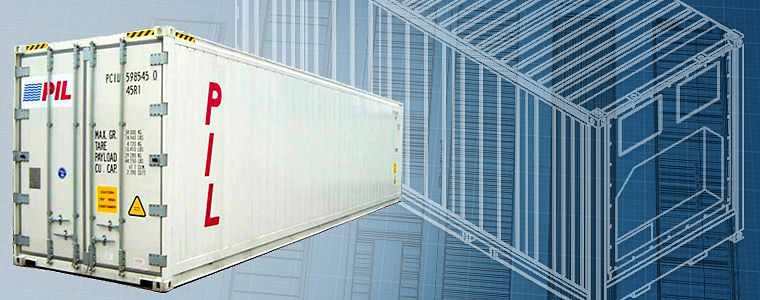

40RH :: Reefer 40' x 8' x 9'6''

Internal Dimensions mm ft
Length 11579 38'
Width 2280 7' 6''
Height 2555 8' 5''
Door Opening mm ft
Width 2294 7' 6''
Height 2569 8' 5''
Weight kg lbs
Max Gross 33999 74960
Tare Weight (excl. machinery) 4190 9240
Tare Weight (incl. machinery) 4712 10410
Max Payload 29278 64550
Max Point of Load T/m² lbs/ft²
  2.00 409.60
Internal Capacity ft³
  67.6 2390

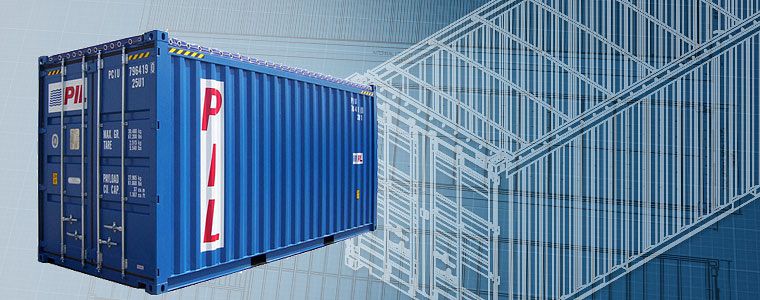

20OH :: Open Top 20' x 8' x 9'6''

Internal Dimensions mm ft
Length 5898 19' 4.2''
Width 2352 7' 8.6''
Height 2673 8' 9.2''
Door Opening mm ft
Width 2343 8' 5.6''
Height 2581 7' 8.2''
Weight kg lbs
Max Gross 30480 67200
Tare Weight (excl. machinery) 0 0
Tare Weight (incl. machinery) 2515 5540
Max Payload 27965 61660
Max Point of Load T/m² lbs/ft²
  3.50 716.90
Internal Capacity ft³
  1307

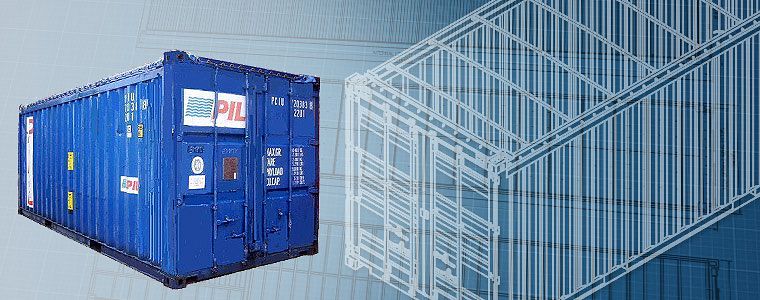

20OT :: Open Top 20' x 8' x 8'6''

Internal Dimensions mm ft
Length 5895 19' 4.2''
Width 2350 7' 8.6''
Height 2368 7' 9.2''
Door Opening mm ft
Width 2343 7' 8.2''
Height 2280 7' 5.6''
Weight kg lbs
Max Gross 30480 67200
Tare Weight (excl. machinery) 0 0
Tare Weight (incl. machinery) 2515 5290
Max Payload 28080 61910
Max Point of Load T/m² lbs/ft²
  3.50 716.90
Internal Capacity ft³
  1159

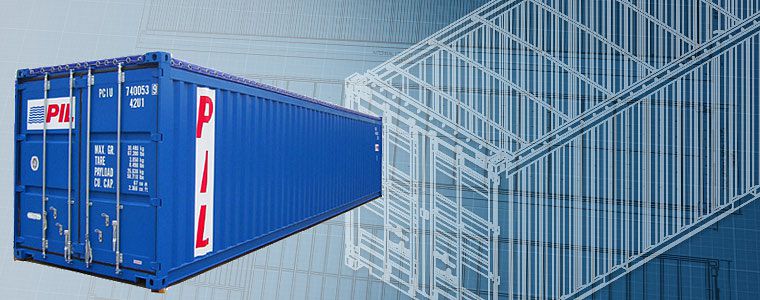

40OT :: Open Top 40' x 8' x 8'6''

Internal Dimensions mm ft
Length 12032 39' 5.7''
Width 2352 7' 8.6''
Height 2368 7' 9.2''
Door Opening mm ft
Width 2343 7' 8.2''
Height 2280 7' 5.6''
Weight kg lbs
Max Gross 30480 67200
Tare Weight (excl. machinery) 0 0
Tare Weight (incl. machinery) 3850 8468
Max Payload 26630 58732
Max Point of Load T/m² lbs/ft²
  2.00 409.60
Internal Capacity ft³
  2365

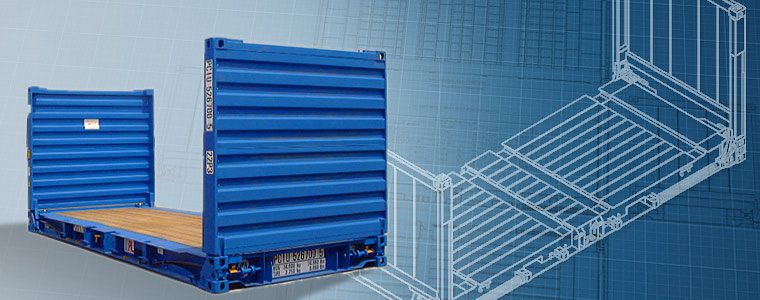

20FR :: Flat Rack 20' x 8' x 8'6''

Internal Dimensions mm ft
Length 5638 18' 5.9''
Width 2350 7' 3.7''
Height 2276 7' 3.9''
Door Opening mm ft
Width 0
Height 0
Weight kg lbs
Max Gross 34000 74950
Tare Weight (excl. machinery) 0 0
Tare Weight (incl. machinery) 2851 6370
Max Payload 31149 68580
Max Point of Load T/m² lbs/ft²
  4.00 819.30
Internal Capacity ft³

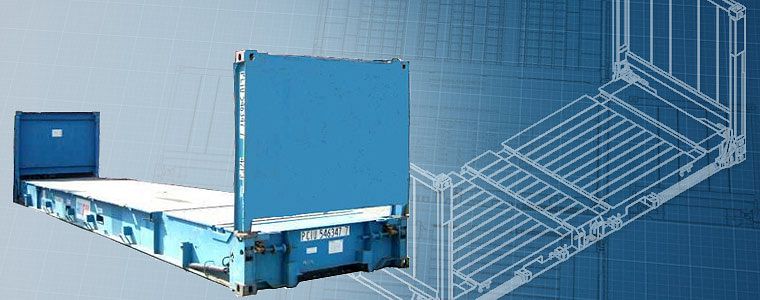

40FR :: Flat Rack 40' x 8' x 8'6''

Internal Dimensions mm ft
Length 11776 38' 7.6''
Width 2230 7' 3.8''
Height 1955 6' 4.9''
Door Opening mm ft
Width 0
Height 0
Weight kg lbs
Max Gross 45000 99210
Tare Weight (excl. machinery) 0 0
Tare Weight (incl. machinery) 5000 11030
Max Payload 40000 88180
Max Point of Load T/m² lbs/ft²
  2.50 512.00
Internal Capacity ft³
